Padlocks are an easy, inexpensive way for property owners to secure access into specific areas. This common type of lock usually secures mounted hasps by connecting and locking two ends of a chain, or by locking out pre-fabricated hardware on an appliance or machine. Though not commonly seen on main entrance or exit doors of businesses or private dwellings, the padlock can be found on storage unit doors, sheds, fence gates, vehicle access bollard posts, and post-indicator valves (PIVs), to name a few locations.
What Tools to Use to Cut Padlocks
Bolt cutters are the common tool of choice for to cut padlocks during forcible-entry. Unfortunately, most padlocks are made of case-hardened steel, which is very strong in comparison to the materials that bolt cutters were intended to cut.
You will find that most of the time, a set of bolt cutters will make the cut, using a big effort, but the damage to the tool after continual use will render it ineffective over time. Take a look at the bolt cutters on your apparatus and notice the large elongated nicks taken out of the cutting edges. Not only can you damage your bolt cutters by cutting padlocks, but you can hinder processes on the fireground.
You probably haven’t been assigned the “bolt cutters” on the fireground when your company rolls up. There is another tool (or set of tools) on the fireground that is frequently found in the hands of multiple firefighters – and that’s a set of “irons.”
Whether you choose a flathead axe or a sledge maul, you can marry it with a Halligan bar – and padlocks will fear you. When a padlock fails or fractures, it usually does so at the latch cut on the shackle, or at the base of the shackle where it swivels down inside. It doesn’t take a tremendous amount of force to fail and can even be accomplished by a single firefighter with a tool in each hand.
Photos from Firefighter Training for Cutting and Forcing Padlocks
Refer to the photos below during firefighter training for representation on cutting and forcing padlocks.
Irons Method No. 1:

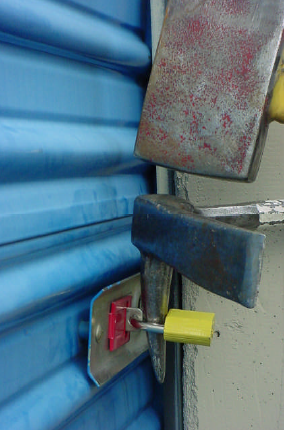

Place the pike end of the Halligan through the shackle of the lock with the striking portion of the Halligan exposed either from the top or the side. One or two good strikes with your axe or maul on the striking surface, and the lock should fail.
Irons Method No. 2:
Place the fork end of the Halligan over the shackle of the lock so it is straddled. One or two good strikes with your axe or maul at the base of the fork end, and the lock should fail.
Circular/Rotary Saw Method:
Using a set of vice grips and a rotary saw with an abrasive blade, you can capture the padlock at its base to ensure that it does not flap around wildly when the saw contacts the shackle. This can safely be done by securing a leash or piece of webbing to the vice grips and pulling it taunt. Have another firefighter assist with this. However, when operating independently, secure the tension by stepping on the leash/webbing with one foot. Make contact on the shackle of the lock at full throttle and complete your cut.
Bolt Cutter Method:

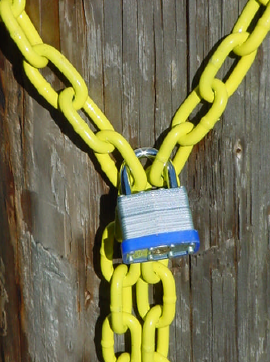

Bolt cutters are great for cutting fencing, light to medium gauge chain, and other soft metals. When you have the option to cut the chain or padlock used in such a combination, cut the link of chain closest to the padlock using the bolt cutters. This enables the property owner to later use his key to unlock the undamaged padlock and pull the slack from the chain to secure the lock to the next available link.
Remember to always try and have an alternative method to what you think will probably work when conducting forcible-entry operations.
Firefighter Continuing Education Training
TargetSolutions features more than 450 hours of training for fire departments. Courses are based on the NFPA codes and standards, including NFPA 1001, NFPA 1021 and the NFPA 1500 Series. Courses also cover wildland fire, response to terrorism, and much more.
About the Author
This blog was submitted by Ed Hadfield of Firetown Training Specialist. Hadfield has more than 27 years of fire service experience, rising through the ranks from Firefighter to Division Chief.
“Battalion 1 and all incoming units, Engine 1 is on scene with four at 1313 Mockingbird Lane of a two-story single family dwelling with heavy pressurized smoke coming from the upper floors and visible fire on the first floor in the Bravo / Charlie corner. Engine 1 has established a water supply and will Fire Attack in an offensive mode. All incoming units continue primary staging. Engine 1 is Establishing Mockingbird Command with the Command Post in front of the structure.”
- Height of Structure: 1 / 2 / 3 Story
- Type of Structure: Single Family / Multi-Family / Commercial / Industrial / High-Rise
- Grouping: Center Hallway / Garden style / Strip Mall / Light Manufacturing
- Conditions: Smoke Showing from the…. Fire Showing from…. Imminent Rescue at the….
- Identified Hazards: Wires Down / High-Density Security Devices / Possible Collapse Situations
Ed Hadfield has more than 26 years of fire service experience after rising through the ranks from firefighter to division chief. He is a frequent speaker on leadership, sharing his experiences within the fire service and also with corporate and civic leaders throughout the United States. For more on Hadfield, please check online at www.firetowntrainingspecialist.com.
The first step in the process is to complete a “Tool Swap.” The initial sounder, or person in front, should pass the rubbish hook to the back-up person by placing the tool to the outside of the operations and grasping the chainsaw in a pass motion on the inside of the operations. Or simply put, “tool to the outside – saws to the inside.” Saws are always passed with the chain break in the on position and the body of the saw first.
The first step in this process is to have the back-up person place the rubbish hook/roof hook into the deck. The back-up person will place the near tine into the deck with a downward strike. Notice that only one tine is placed into the deck.
The initial cut will be toward the fire to establish the identification of the primary outside rafter. Once the outside rafter is identified, the saw is turned around and the head cut is established by reversing the direction, rolling the center rafter and stopping at the next rafter or before you cut into your roof ladder. Keep this key point in mind, chiefs don’t like when you cut into the ladder. The next step in the sequence is to establish the outside cut. Be sure to intersect your head cut and outside cut with enough completion to completely cut through the roof decking. If your roof decking is 2 inches in thickness, your intersection should be 4 inches.
Your next step is to make the bottom cut. Intersect the outside cut with the bottom cut, cut back toward the safety of your ladder, rolling the center rafter, and stopping at the inside rafter.
Then, the final step is to complete the ventilation opening. Step back completely onto the ladder and intersect the head cut, cutting down the inside of the inside rafter. Please note that when making cuts that are parallel to rafters, give up approximately 3 to 4 inches of area so you don’t rub or cut into the rafter as the operation is being accomplished. The back-up person has removed the rubbish hook from the deck and readies himself to swap tools to accomplish the operations.
Again, the “tool swap” occurs with the saws to the inside, and tool to the outside. This limits the need to swap positions.
Once the swap has occurred, the saw person utilizes the hook to clear the ceilings and vent the structure from the hazards of heat, smoke and other hazards. The elimination of the rapidly developing BTU’s within the structure will greatly reduce the potential of a hostile event (flashover, backdraft, smoke explosion, etc.). It’s important to keep your hand on the D-handle portion of the hook while clearing the ceilings. This will limit the chances of the hook sliding through your hands and into the structure. If you find that the hook tines are catching or other entanglement hazards, turn the hook over, grasp the straight edge of the hooks, and utilize the D-handle as the clearing mechanism.
If the initial hole is not sufficient to clearly ventilate the structure and additional ventilation needs to be accomplished, simply perform the “Tool Swap” again and continue to expand the original ventilation opening in a horizontal fashion. Since a bottom cut is already established there is no need to reestablish the identification or head cut. Continue with the outside (fire side) cut in a downward fashion.
Intersect the outside cut with the new bottom cut and roll the center rafter back toward the safety of the ladder. Once back to the outside rafter, reach up intersect the bottom of the existing opening and move downward with the completion of the inside cut and the intersection of the new bottom cut. Again, complete a “tool swap” and clear the ceiling space. This has completed the entire task and radio communication with interior crews or the IC should be made to determine if the ventilation operations have been successful in relieving the conditions that the interior crews have experienced.
The bottom line is that no operation is effective unless we actively train and become proficient at the operation. Utilize this as a foundational format to establish your operations within your own organizations.
